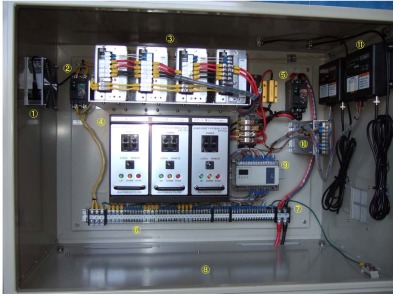

Main Control Panel Top Section

Power Regulartor
Control Unit
Terminal Block
(Option) PLC for Loop Control
(Option) Wireless Signal Receiver

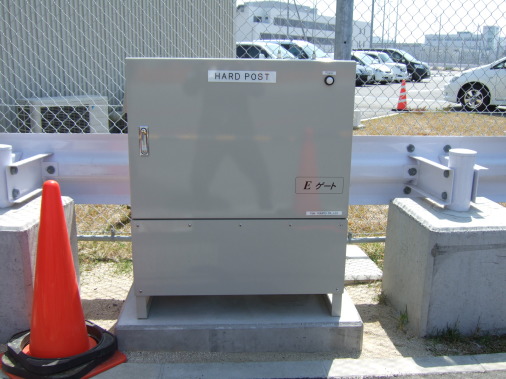

Main Control Panel
- Outdoor Spec.
- Dimensions varies depending on the number of bollards and options

EP-354A Series
Automatic / Remote Operation

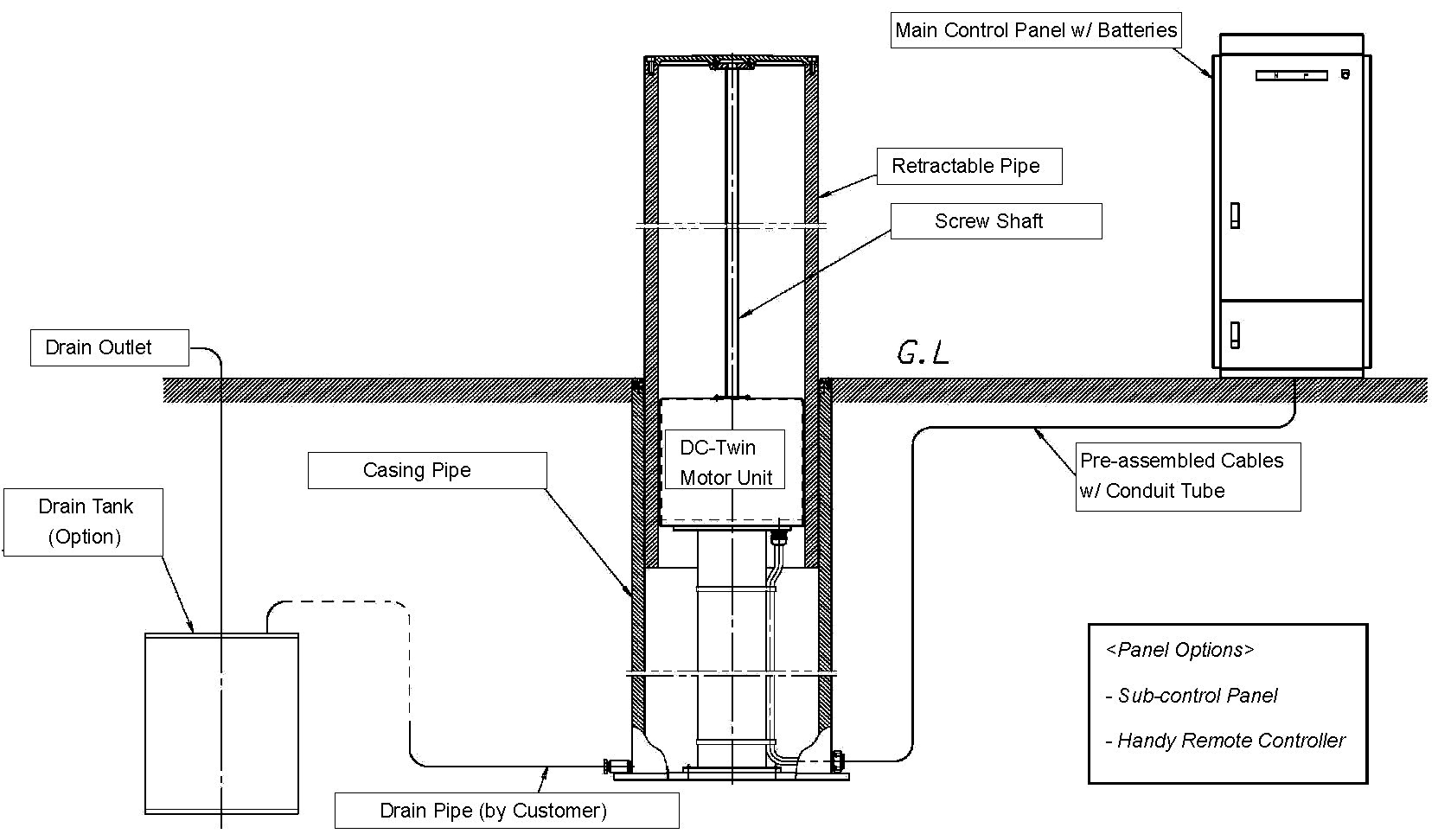

Self-Contained Twin-Motor Drive

Main Control Panel Bottom Section

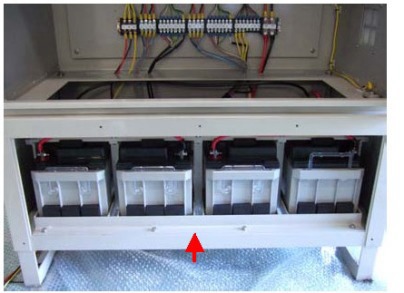

Batteries 12VDC
(4 pcs. for K4, K8, K12)
(7 pcs. for K12-HS)

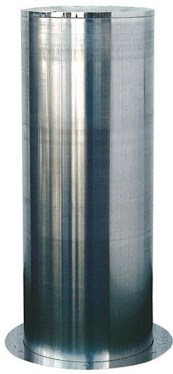

EP-354A/ST-950 EP-354A/ST-700 EP-354A/ST-650
Bollard Dia. 354mm (13.9")
Bollard Height 950mm (37.4")
Bottom Casing 1380mm (54.3")		 Bollard Dia. 354mm (13.9")
Bollard Height 700mm (27.6")
Bottom Casing 1130mm (44.5")		 Bollard Dia. 354mm (13.9")
Bollard Height 650mm (25.6")
Bottom Casing 1080mm (42.5")
Standard Model (ST-950)
Up 4.0 sec. / Down 3.0 sec.
400 cycles / day

High Speed Model (ST-950-HS)
Up 1.8 sec. / Down 1.0 sec.
400 cycles / day		 Up 1.8 sec. / Down 1.4 sec.
400 cycles / day		 Up 2.1 sec. / Down 1.7 sec.
3000 cycles / day
* DC-Brushless Twin Motor / Separate Motor Drive Circuit
* Motor Over-current Protection
* Battery Backup - Over 100 Continuous Operations During Power Failure
* Retractable Pipe : High Strength Carbon Steel + Kanigen Plating + Hard Chrome Finish
* Top Cover and Screws: Stainless Steel
* Casing Pipe : High Strength Carbon Steel + Kanigen Plating

Rapid & Strong
Full Protection in Seconds (Min. 1.8 sec.)

K4
High Cycle

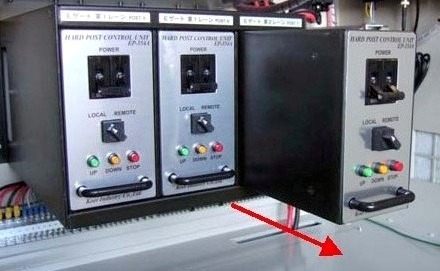

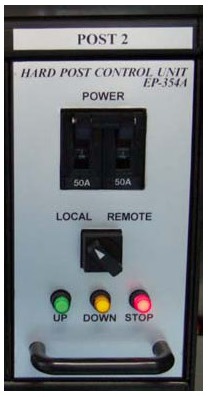

Control Unit

One Dedicated Control Unit Per Bollard
Dual Motor Drive Circuits
Easily Replaceable in Case of an Emergency

K12
Highest Security

K8
High Speed
